Bifurcated Riser X16 To 2x8
Hey there, tech enthusiast! Ever stared at your motherboard and thought, "Hmm, I need more PCI-e slots... but how?" We've all been there, right? Let's talk about something a little… unorthodox. Something involving bifurcation and risers. Buckle up!
Specifically, we're diving into the wonderful world of taking a single, glorious x16 PCI-e slot and splitting it into two x8 slots. Yeah, you heard me right. It's like magic, only it involves tiny circuits and a whole lot of hoping you don't fry anything. (Just kidding... mostly.)
Why Bother? (Seriously, Why?)
Okay, so you're probably thinking, "Why would I ever want to do that?" Good question! There are a few scenarios where this kind of shenanigans actually makes sense.
Must Read
More GPUs: Mining, AI, or just wanting to run a ridiculous amount of monitors? (I'm not judging!) Splitting that x16 slot lets you cram in another graphics card (or two!) even if your motherboard is already bursting at the seams.
NVMe SSDs Galore: Modern SSDs are fast. Like, ridiculously fast. But you know what's faster? More of them! A bifurcation riser lets you connect multiple NVMe drives via PCI-e adapters, bypassing the limitations of your motherboard's built-in M.2 slots. Imagine the read/write speeds! (Cue drool...)
Specialized Cards: Maybe you need a fancy capture card, a high-end audio interface, or some other niche PCI-e device. Motherboard real estate is precious, my friend. Sometimes, splitting the difference is the only way to fit everything in. It’s the digital equivalent of Tetris!
Basically, if you're feeling limited by your motherboard's expansion capabilities and you're comfortable with a little technical tinkering, bifurcation is worth considering.
The Guts of the Operation: Riser Cards and Bifurcation

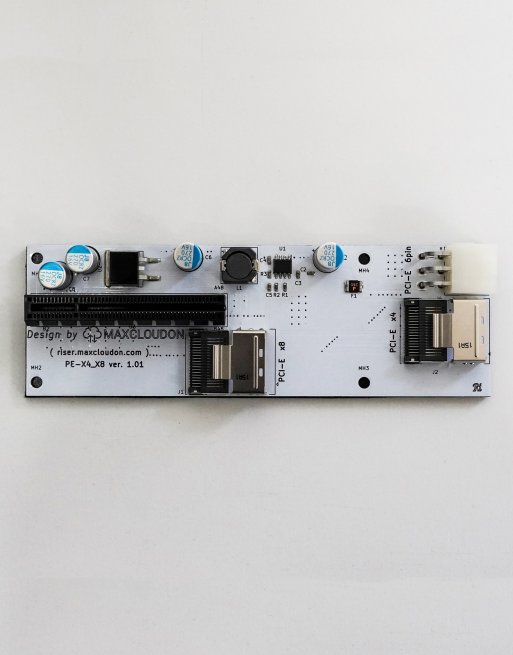

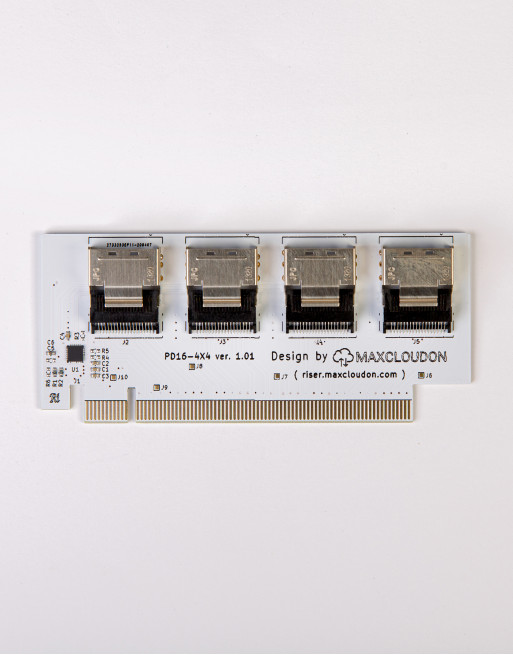

So, how does this whole splitting thing actually work? That's where the bifurcation riser card comes in. It's essentially a fancy adapter that takes the x16 slot's bandwidth and distributes it across two (or sometimes even more!) x8 slots.
But here's the catch: Your motherboard must support bifurcation. It's not just a plug-and-play affair. You need to delve into the BIOS settings and tell your motherboard, "Hey, instead of treating this x16 slot as a single entity, I want you to split it up!" Think of it as teaching your motherboard a new trick.
If your motherboard doesn't support bifurcation… well, you're out of luck. The riser card will be about as useful as a chocolate teapot. (Which, incidentally, sounds like a fun, albeit messy, experiment.)
Things to Keep in Mind (Because There's Always a Catch)
Alright, before you rush out and buy a bifurcation riser card, let's cover some important considerations.
Bandwidth: Remember, you're splitting the bandwidth of the x16 slot. Each resulting x8 slot will have half the bandwidth of the original. In most cases, this isn't a huge deal, especially with modern PCI-e standards. But for certain high-bandwidth applications (like some high-end GPUs), it could potentially limit performance. We're talking marginal differences for gaming mostly.
Compatibility: Double-check that the riser card is compatible with your motherboard and the devices you plan to connect. Read reviews, check forums, and do your homework! Nobody wants a pricey paperweight.
Power: Adding more devices means more power consumption. Make sure your power supply unit (PSU) can handle the extra load. Don't skimp on the PSU! It's the heart of your system. A good one means everything.
Cooling: All those extra components crammed into a tight space can generate a lot of heat. Ensure you have adequate cooling to prevent overheating and performance throttling. Nobody wants their rig sounding like a jet engine!
BIOS Settings: As mentioned before, you absolutely must configure your motherboard's BIOS settings to enable bifurcation. This usually involves changing the PCI-e slot configuration from "Auto" to "x8/x8" or a similar setting. Consult your motherboard's manual for specific instructions. It's kinda like reading the instructions to Ikea furniture but, you know, for computers.
Final Thoughts: Worth the Risk?
So, is a bifurcated x16 to 2x8 riser worth it? It depends on your specific needs and technical expertise. It's not a plug-and-play solution, and it requires a bit of research and tinkering. But if you're feeling adventurous and need to expand your system's capabilities beyond its original limitations, it can be a powerful tool.
Just remember to do your homework, double-check compatibility, and be prepared to dive into the BIOS. And hey, if you accidentally fry something… well, that's just part of the fun, right? (Okay, maybe not fun, but definitely a learning experience!) Happy building!
